Cane Creek

Cane Creek Helm MKII Suspension Fork - Black

£650.00 £1,199.99 46% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

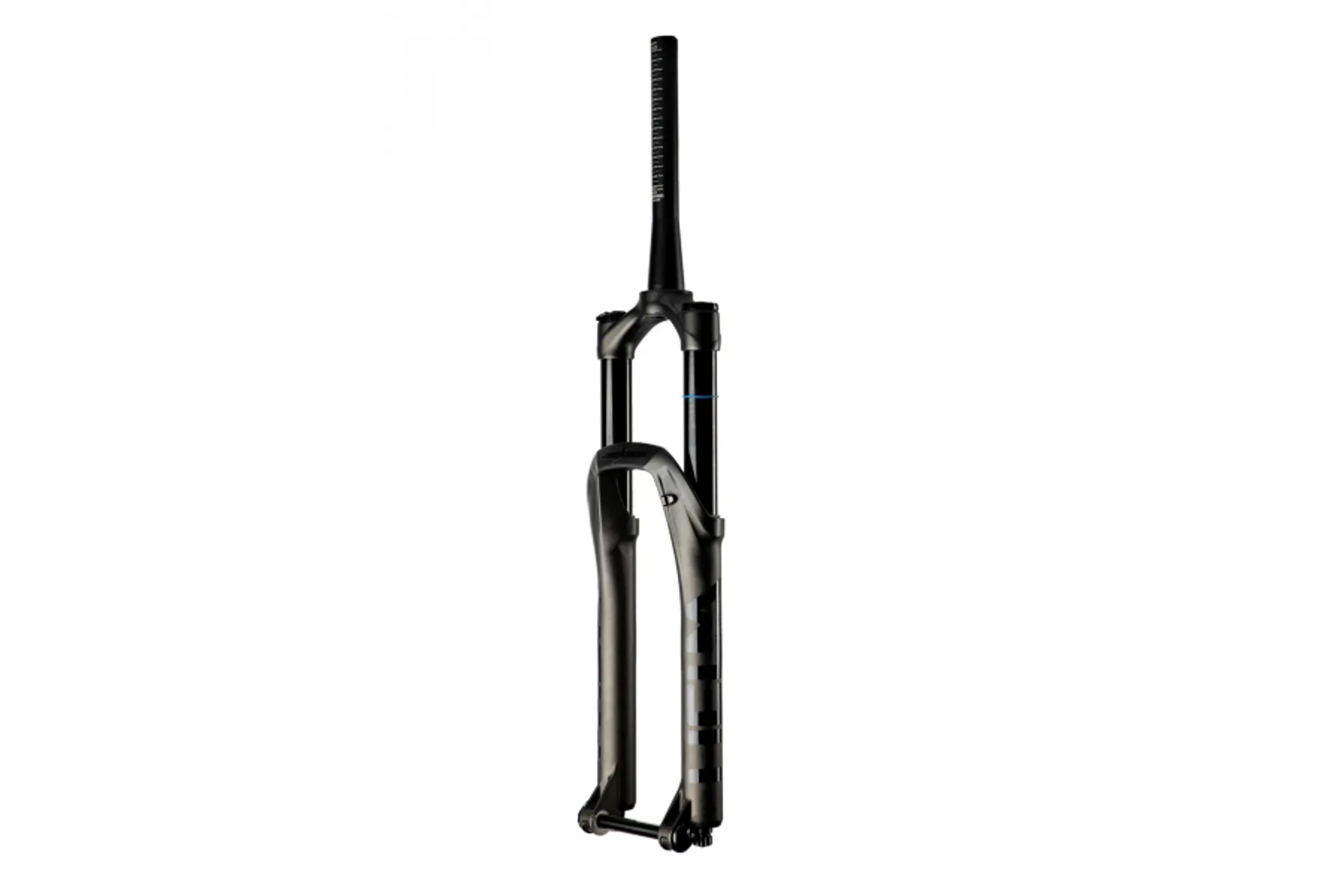

Cane Creek Helm MKII Suspension Fork - Black

Season:2021

Brand:Cane Creek

Code:7279GLSBLK

Taking excellence to another level!

With the helm mkii they re-examined every aspect of the forks internal design. From new skf wiper seals, to lighter weight damper fluid, to a redesigned air spring - tweaked and tuned and improved helm, all in the name of reducing friction as the fork moves through its travel. The result is the smoothest and most supple fork cane creek has ever made, all while providing the same incredible support and stability of the original helm.

Helm mkii highlights:

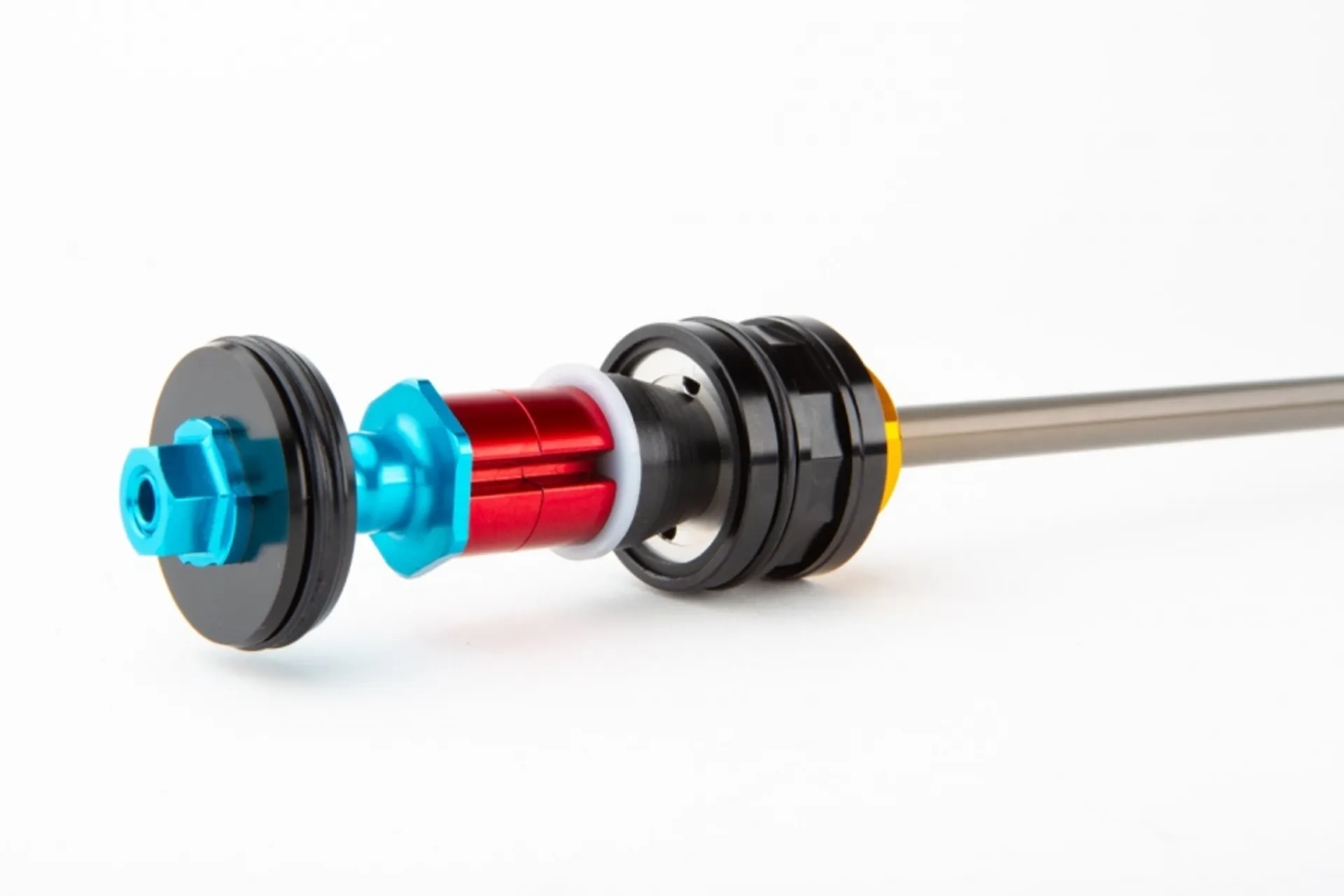

redesigned air spring - new friction reducing air piston material and a threadless air seal head for ease of maintenance

skf wiper seals - reduced friction over previous seals

updated damper - lighter compression tune to increase sensitivity,2.5wt motorex damper oil with 11% lighter viscosity and new skf oil seal head to reduce friction.

Helm mkii features:

  • weight:2080g (29 air) | 2340g (29 coil)
  • wheel size: 29" or 27.5"
  • damping:high speed compression - 10 positions, low speed compression - 17 positions, low speed rebound - 10 positions
  • spring: "double air" spring system with independent positve and negative chambers | traditional coil spring
  • stanchion diameter: 35mm
  • travel: factory position at 160mm.internal adjustment, 10mm increments (160mm down to 130mm) 2 travel spacers included with air fork
  • max tyre size: 29 - 64mm wide by 749mm tall | 29 w/ 27.5+ - 75mm wide by 739mm tall 27.5 - 65mm wide by 714mm tall
  • axle:"d-loc" 15mm thru axle system
  • spacing:15mm x 110 boost spacing
  • offset: 29" - 44mm or 51mm | 27.5" - 44mm
  • axle to crown: 29" - 568mm at 160mm travel | 27.5" - 553mm @ 160mm travel

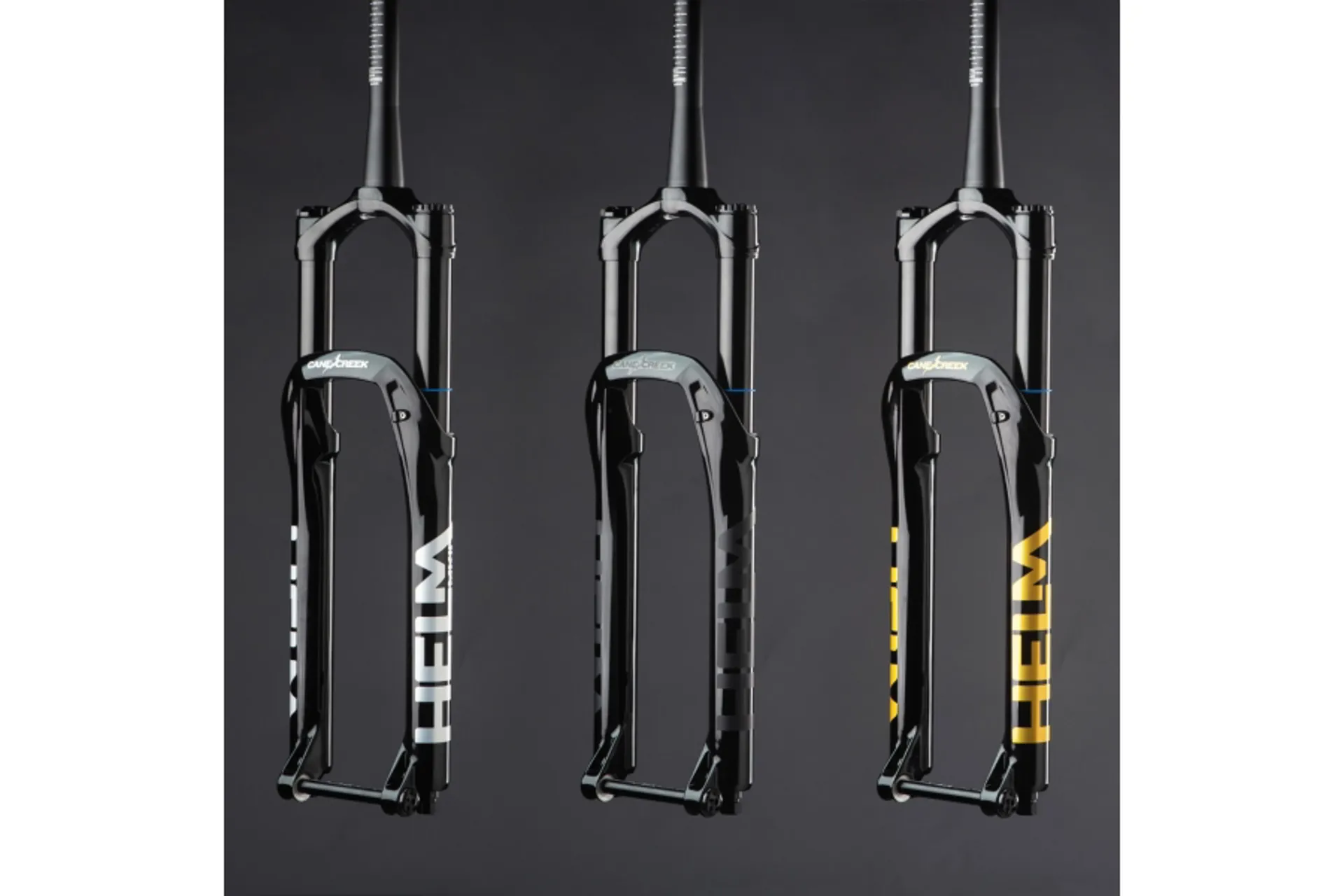

  • colour: 29" - gloss black | 27.5" - matte black

useful link -how to setup helm forks
